SPECIFICATIONS

Aperture: f2.8

Audio: Audio recording

Brand Name: Reolink

Customized support: Online Technical Support

Data Storage Options: Micro SD card,NVR

Field of View: Horizontal: 87° Vertical: 44°

Function: Wide Angle,Built-In Mic,Night Vision,Waterproof / Weatherproof

IP Rating: Ip67

Image Sensor: 1/2,7'' CMOS sensor

Lens: 2.8 mm,f=4.0mm fixed; F=2.0, with IR-cut filter

Material: ABS,Metal

Model Number: P334

Pixels: 8mp

Place of Origin: Guangdong, China

Power: DC power port

Protocols & Standards 1: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP

Protocols & Standards 2: SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Sensor: CMOS

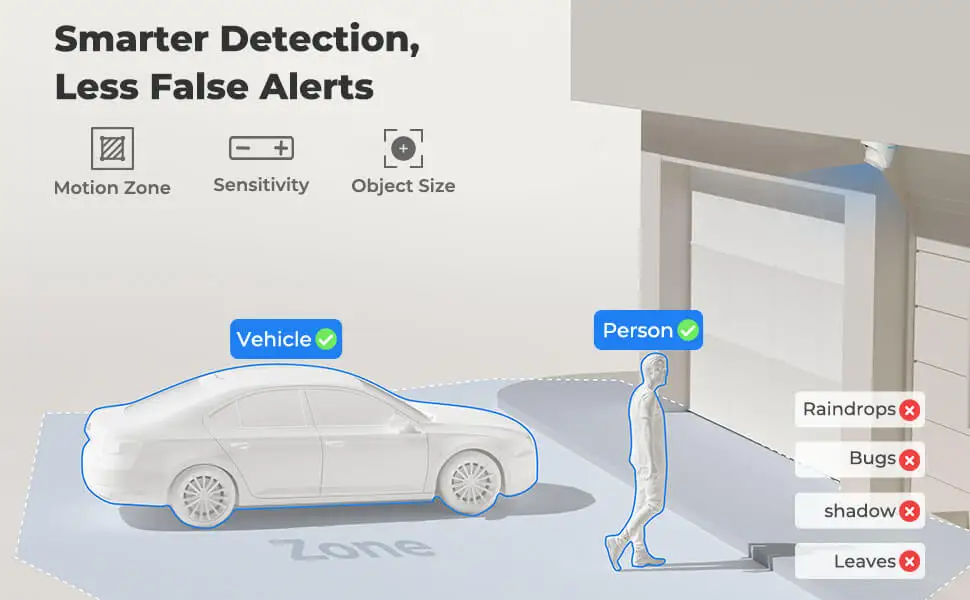

Smart Alarm: Motion detection; person detection; vehicle detection; pet detection

Smart App: Reolink, Google Assistant

Smart Home: Google Assistant

Special Features: Motion Detection,POE

Style: Dome Camera

Video Compression Format: H.265

Video Resolution: Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec

Viewing Angle: 87°

Warranty: 2 Years

Product Description

Flexible Recording Options

This security camera can optionally record motions events or 24/7 to a microSD card (Up to 256GB, not included), Reolink NVR, or FTP server. More space provided by the microSD card, longer footage can be saved from this camera under default bitrate in 24/7 recording schedule.

Remote Access Anytime & Anywhere

Feel free to Live view and share the fun moments with your family or friends via Reolink App/Client wherever you are. The camera supports up to 12 users using different devices to live stream simultaneously (with 2 mainstreams & 10 substreams).

Outstanding 4K@25fps UHD Videos

This outdoor PoE camera shoots 4K high-quality videos at 25fps, delivering an unparalleled smoother and clearer viewing experience than ever. Details you see around home or store will be recorded perfectly in live streaming and playback, no matter day or night.

Visualize the Passing of Time

The time-lapse function allows you to capture the dynamic processes vividly and visually, such as the sunrise or sunset, flowers blossom, and the construction of a building, then watches the whole process in minutes and seconds. (Time-lapse only works on Reolink App.)

Work With Smart Home

Get the camera to join your smart home! Just tell your device to show you the camera, and you will see live feed on your Chromecast-enabled TVs. Action speaks louder than words? No, words are enough. Moreover, no extra subscription or charges will be needed.

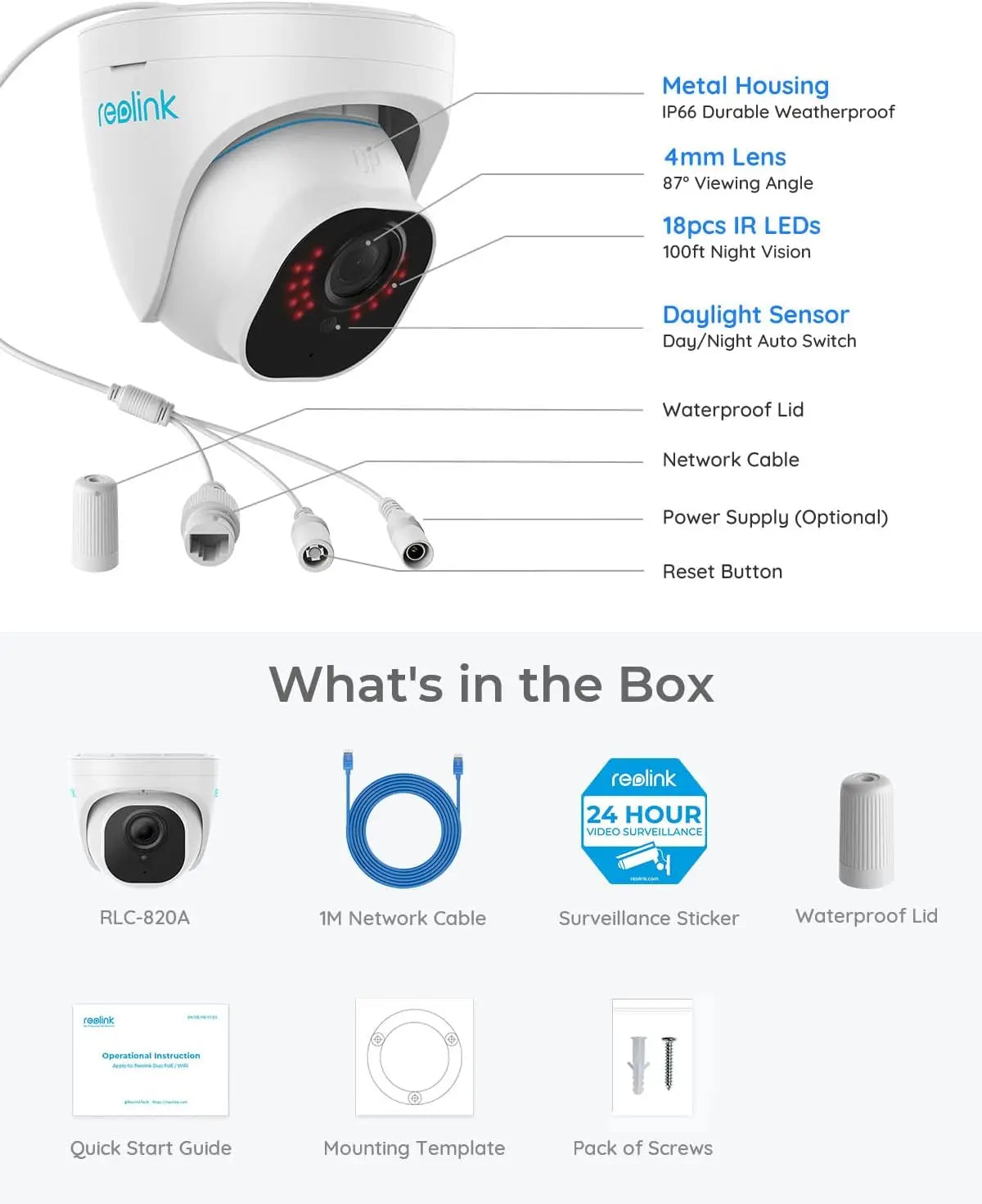

IP66 Waterproof for Outdoor Use

With the rugged housing and body, this security camera can keep guard anywhere, outdoors or indoors, and in any harsh weather conditions.

* Temperature: -10°C - +55°C (14°F - 131°F)
* Humidity: 10% - 90%

Specification

Image Sensor	1/2,7'' CMOS sensor
Video Resolution	Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec
Lens	f=4.0mm fixed; F=2.0, with IR-cut filter
Video Compression	H.265
Field of View	Horizontal: 87°; Vertical: 44°
Day & Night	IR-cut filter with auto-switching
Night Vision	30 meters (100 ft) (LED: 18pcs/14mil/850nm)
Audio	Audio recording

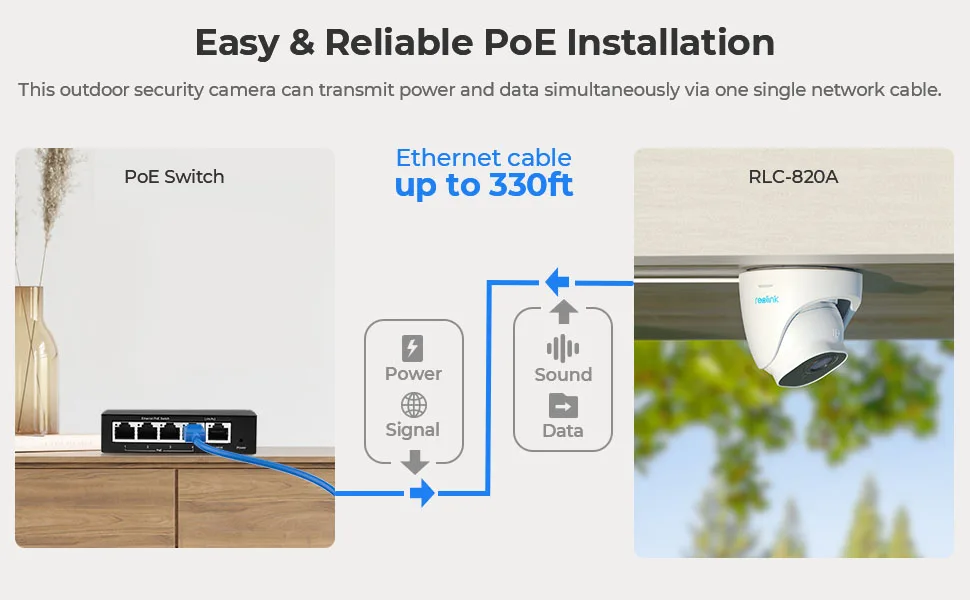

PoE	IEEE 802.3af, 48V Active
DC Power	DC 12.0V⎓1A, <12W
Power	DC power port
System	Reset button
Ethernet	One 10M/100Mbps; RJ45
Storage	MicroSD card slot (Max. 256GB)
Audio	Built-in microphone
Frame Rate	Mainstream: 2fps - 25fps (default: 25fps);  Substream: 4fps - 15fps (default: 10fps)
Code Rate	Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps);  Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browser Supported	Edge, Chrome, Firefox, Safari
OS Supported	PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm	Motion detection; person detection; vehicle detection; pet detection
Record Mode	Motion-triggered recording (default); scheduled recording; 24/7 recording
Protocols & Standards	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access	20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Smart Home	Google Assistant
Temperature	Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)
Humidity	Operating humidity: 10% ~ 90%
Weatherproof	IP67
Dimensions	Φ105*95mm
Weight	467.5g

FAQ

Q: How to get the camera working? A: With the power from IEEE802.3af PoE switch/injector(Not included) via one CAT5/6/7 ethernet cable, DC 12V power adapter(Not included), you could set up and access the camera via Reolink App, Reolink PC client, or web browser. Q: Will this work with the Reolink NVR or system? A: If you want to buy a new one, the currently on-sale NVRs work with all PoE and plug-in WiFi cameras. If you already have one, you can verify the compatibility via the System Information of the NVR. Q: Is the camera compatible with third-party software/System/NVR? A: The RLC-810A IP camera is compatible with some third-party software/NVR such as Blus Iris or Synology. But currently, we could only ensure the full compatibility between this camera and the Reolink NVR/software. Q: Why can't I connect it to 3rd party softwares? A: The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares. Q: Is a subscription fee required for Reolink PoE cameras? A: No, Reolink PoE cameras work well on their own without subscription fees. You can make full use of the person/vehicle/pet detection, local storage, and other functions for free!
